R-Evolution®

R-Evolution® is the system that offers a wide range of options for each stage of the cataract procedure, improving performance and functionality

Category:

Description

DESCRIPTION

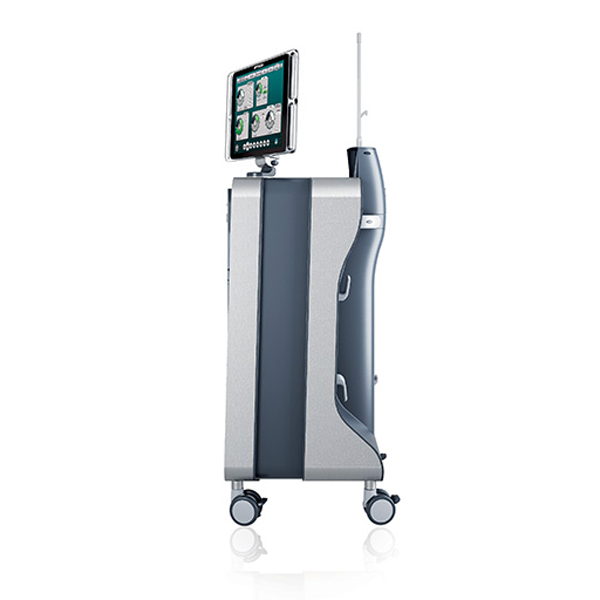

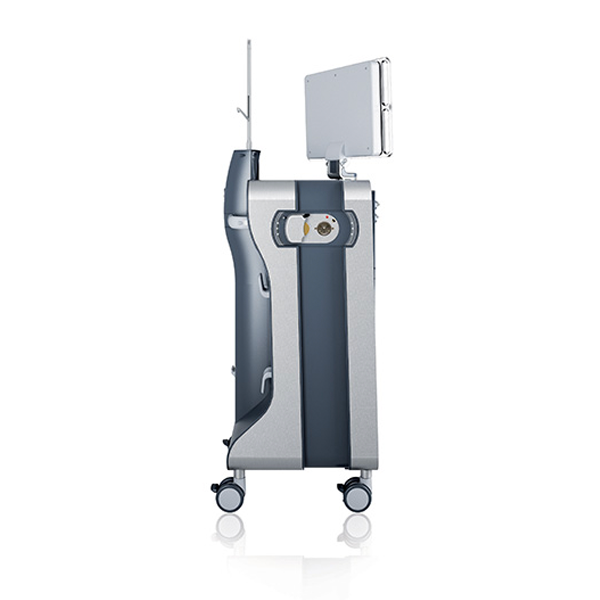

Tower Phaco System with Dual Pump (Peristaltic and Rotary Vane)



BROCHURES

R-Evolution brochureDownload

R-Evolution technical sheetDownload

Accessories catalogDownload

https://www.bvimedical.com/wp-content/uploads/2023/11/BVI-Product-Catalog-2023.pdf

Download US Catalog

Contact us

Videos

R-Evolution: Advancing Access to Micro-Incisional Combined Surgery


Visit our Youtube Channel

Features & Benefits

R-Evolution® is the system that gives a wide range of options for each step of the cataract, vitreo retinal or combined procedure, enhancing performances and functionalities.

AGILE FLUIDICS™

  • IOP Dynamic Compensation to support fluidic stability during all phases of surgery of both the posterior and anterior segment
  • Selectable aspiration system between flow or vacuum based pump



TWEDGE™ 20K, the double blade vitrectomy probes up to 20,000 cuts per minute for a paradigm shift in the efficiency of vitreous removal



VALVED TROCARS, with self-retained scleral guides and infusion cannula



LED LIGHT SOURCE, free of harmful UV and IR emissions, having 3 independent outputs with selectable colour filters, Wide Angle shielded illumination probe for panoramic view



GREEN LASER MODULE 532nm, endo-photocoagulation with integrated laser module control interface



Auxiliary Functions for Vitreoretinal Surgery:

  • Automatic Fluid/Air exchange and Fluid Air (also through pedal)
  • Silicone oil injection (also with simultaneous suction) and oil removal through the same kit
  • Eso/Endo Diathermy
  • Phacoemulsification via Pars Plana
  • Fluids Extrusion



Minimal Stress™: an ultrasound management system which continuously learn when facing resistance opposed by lens material and it maintains effective intraocular phaco tip elongation consistent with the display programmed value



Optimized ultrasound emission Protocols (pre-Fixed Duty Cycle, HD Pulse, Burst) to improve efficiency during lens removal



User interface for easier human-machine interaction through the immediacy of software and wireless pedalx

Instructions for use

Instructions for use

Phaco tip wrench IFU

Test chamber IFU

Additional information

Not all products or offerings are approved or offered in every market. Approved labelling and instructions may vary from one country to another. Contact your local distributor or BVI (Contact us – BVI Medical) for worldwide product information.

This product is not approved by the FDA for use or distribution in the United States of America.
