Cryo-line

Ophtalmic Cryosurgery System

Description

General Features

The CRYO-LINE medical device is designed for use in ophthalmic surgery by qualified personnel. More specifically, the surgical procedures where the device can be used are listed below:
• Retinal detachment
• Glaucoma
• Cataract

CRYO-LINE operates according to the physical law of the Joule-Thomson effect to freeze the tip of the probe and reach freezing temperatures of approximately -60°C. The gases used must be medical-grade, hyperdry Nitrous oxide (N2O) or Carbon dioxide (CO2), at saturated vapor pressure (approx. 60 bar) and room temperature. The gases must be stored in non-siphon cylinders.

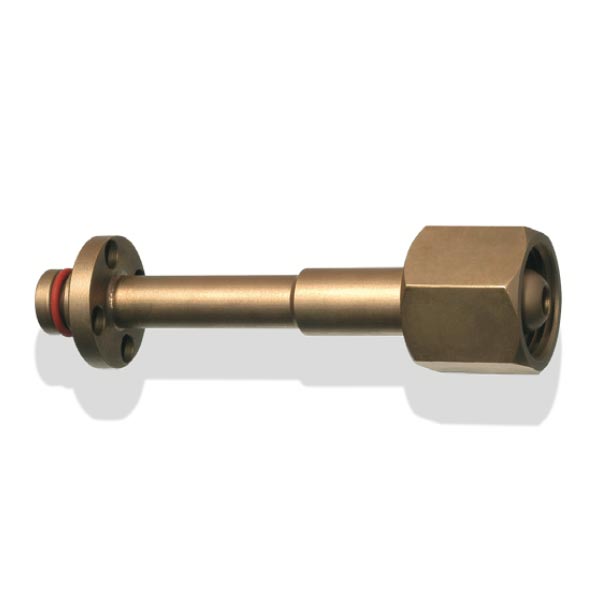

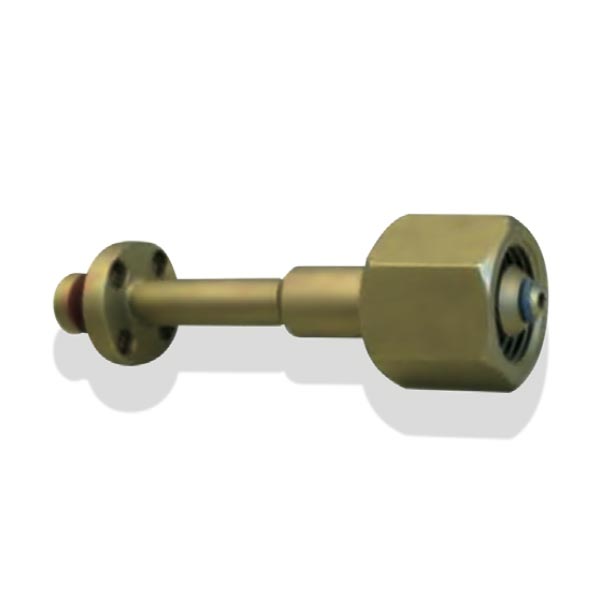

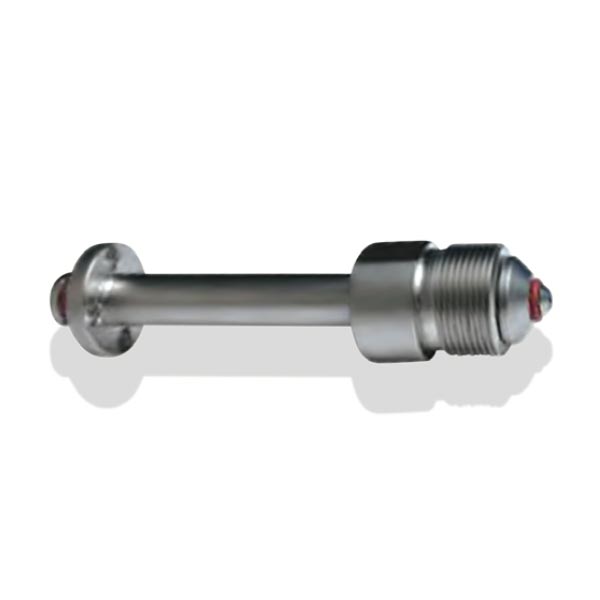

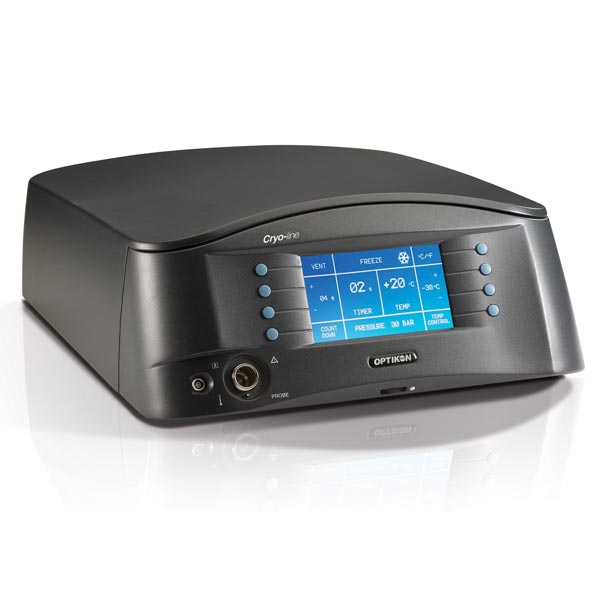

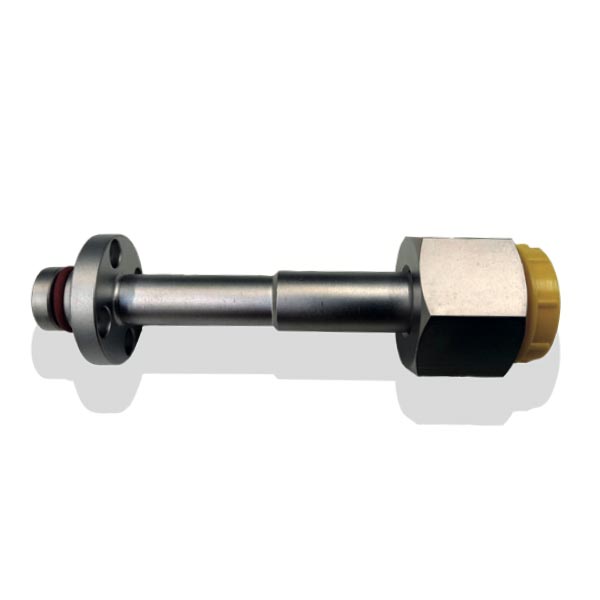

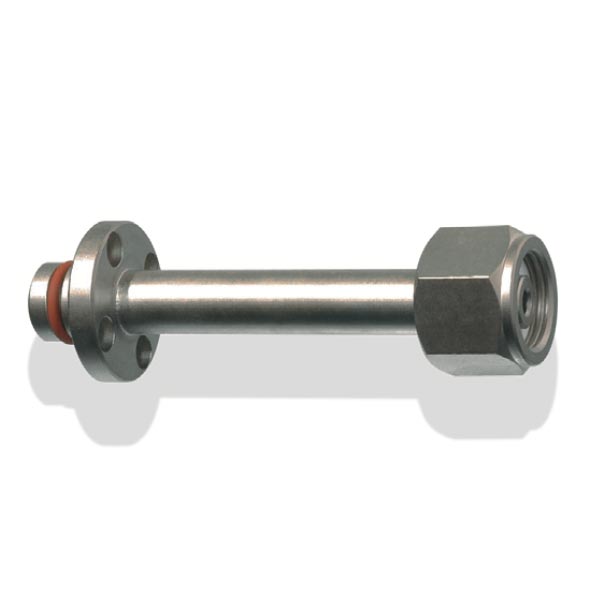

The CRYO-LINE device consists of a control console fitted with a high-pressure hose and inlet filter for connection to a gas cylinder, and a foot pedal.
The console is equipped with a connector for attaching a hose, which allows the exhaust gas to be channeled and released outside the operating theater if N2O is used.

BROCHURES

Cryo-line brochureDownload

Cryo-line TDSDownload

https://www.bvimedical.com/wp-content/uploads/2023/11/BVI-Product-Catalog-2023.pdf

Download Catalog

Contact us



Category:

Features & Benefits

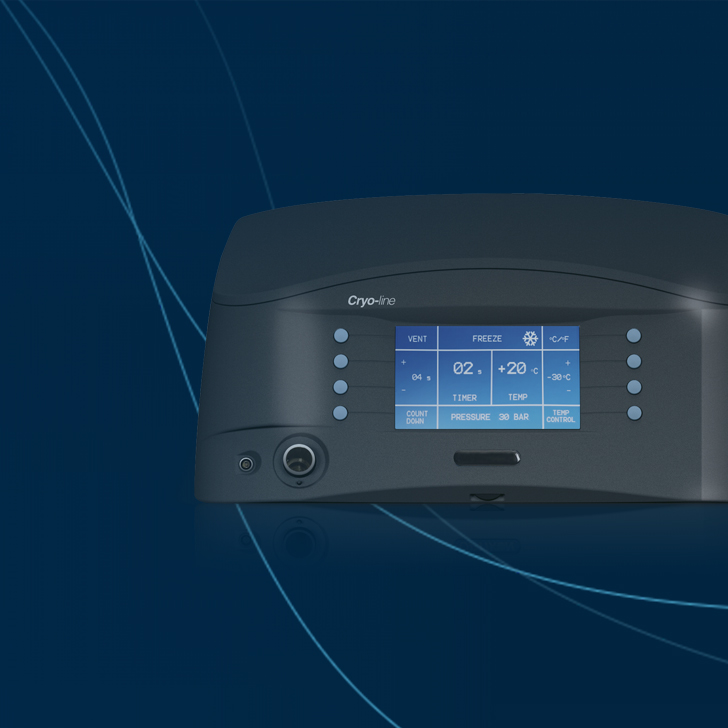

Straightforward Interface

  • Easy to read LCD screen
  • User friendly keyboards

Controllable Parameters

  • Application temperature control (-60°C to -25°C step 5°C)
  • Application time control (1 s – 60 s)

Operating Features

  • Monitored probe temperature
  • Automatic console pneumatic test
  • Self initiated cryoprobe purge cycle

Treatment Options

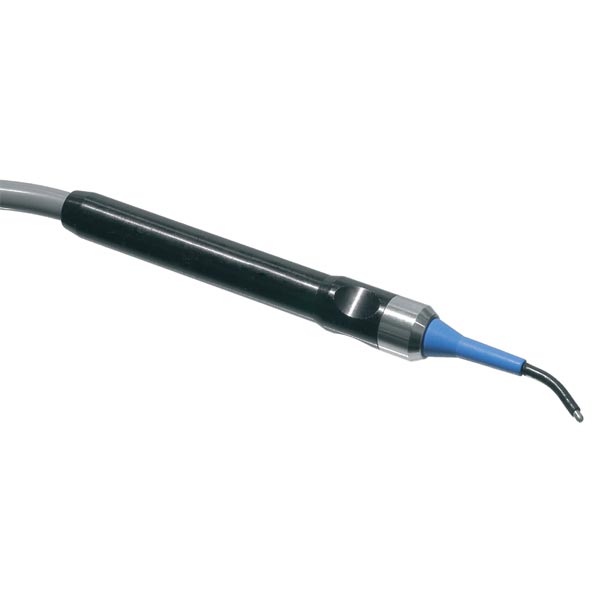

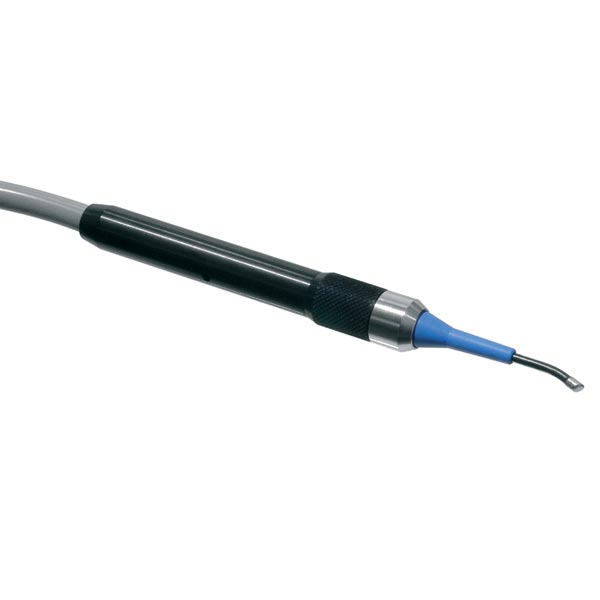

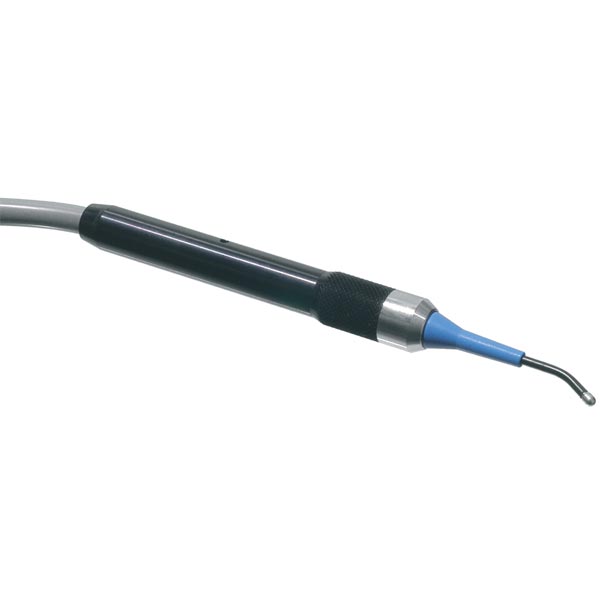

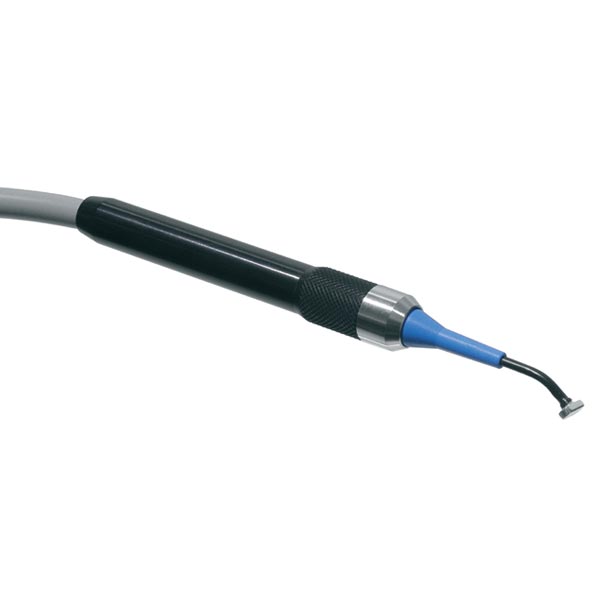

  • Suitable range of probes
